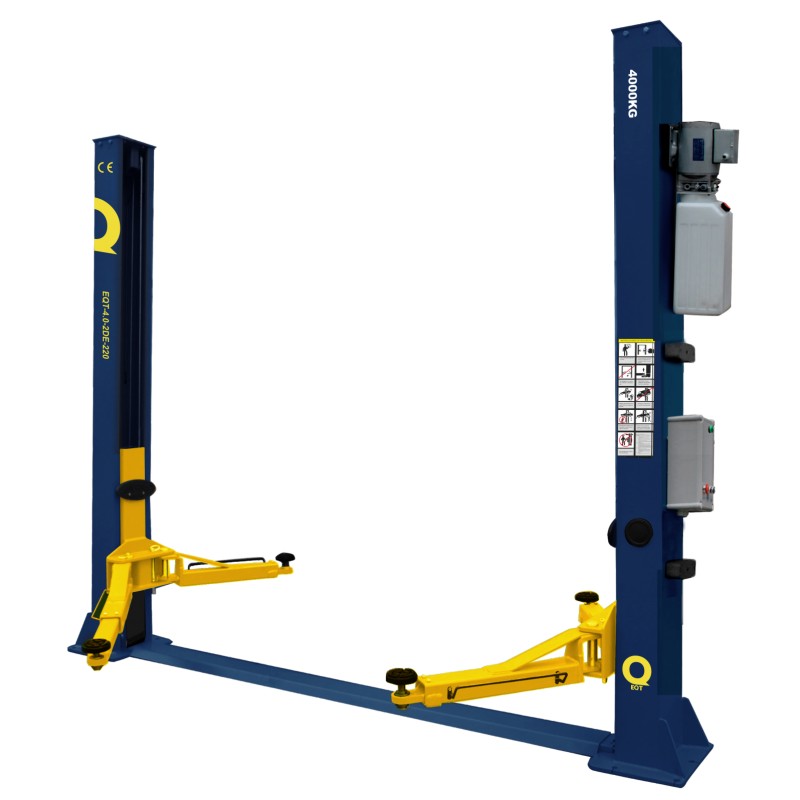

Lift 2 columns 4 tons

€1,936.00
Tax included
€1,600.00 Tax excluded

This  electro-hydraulic lift  operation is designed to work with vehicles of medium and small size with a maximum total weight of 4t in garages and wo…

+ More info
10/EQT-4.0-2DE-220
2
Quantity
Last items in stock

This electro-hydraulic lift operation is designed to work with vehicles of medium and small size with a maximum total weight of 4t in garages and workshops.



FUNCTIONS AND CHARACTERISTICS OF EQUIPMENT:

• The car lift complies with Directive 2006/42 / EC and includes the latest required standards such as EN 1493: 2010.
• Designed based on the standards of quality and performance to meet the necessary requirement of any garage or workshop.
• Automatic electromagnetic safety system equipped with two anchor points in each column.
• Powered by two hydraulic cylinders.
• Panel fully automatic electric control.
• System security cable elevation.
• Automatic safety anchor arm.

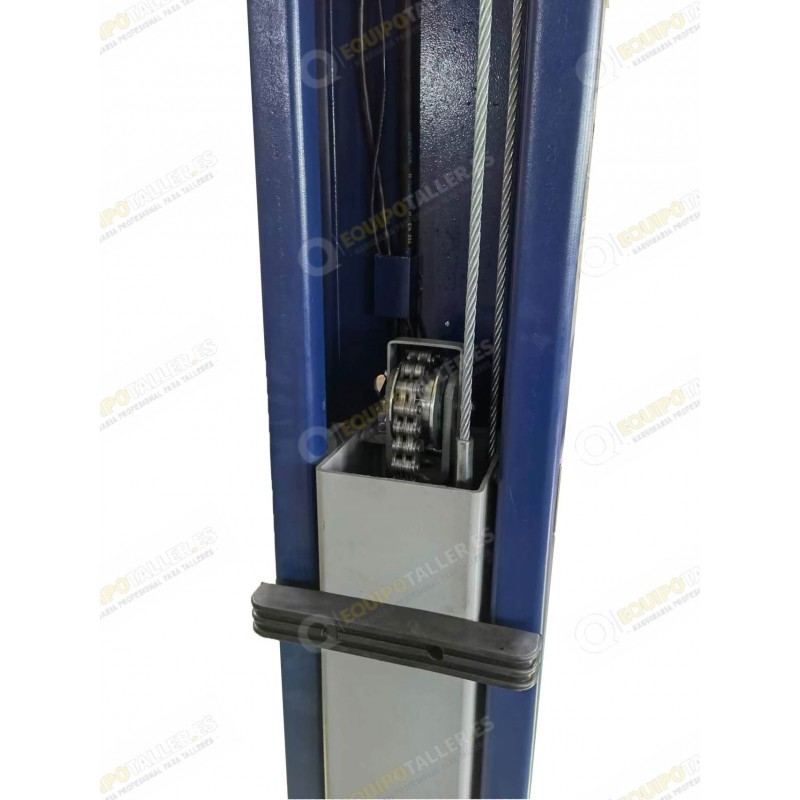

• Steel cable for stability arms team.
• Available in 380 V (three-phase) and 220 V (single phase) depending on customer demand.
• Painting with corrosion resistant finish
• Regulations and European approvals.

The car lift is provided without any liquid.

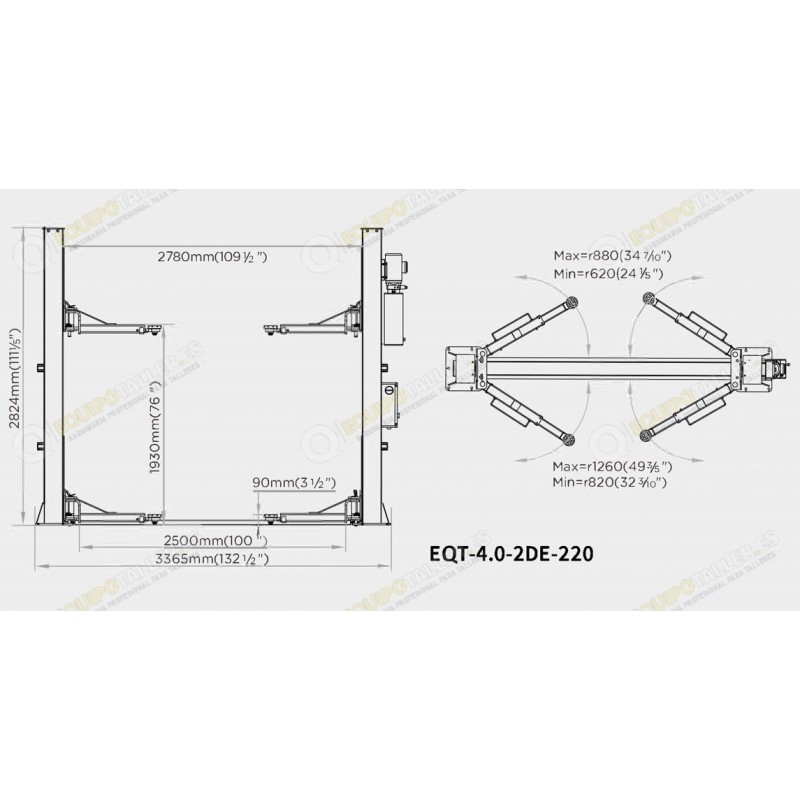

TECHNICAL CHARACTERISTICS:

Feeding

220v 50Hz/ 380v 50Hz

Power

2.2 Kw

Loading Capacity

4.000 Kg

System Type

Eléctrico hidráulico

Tipo de desbloqueo

Automático

Maximum lift height

1.800 mm

Total height

2.826 mm

Rise time

<30s

Lowering time

>26s

Width between columns

2.750 mm

Overall width

3.324 mm

Noise level

< 80 db(A)

Weight

610 kg




REQUIREMENTS
The installation of this equipment should be in a perfectly level.

NOTE
The customer agrees to dispose of the material appropriate for the download of this special machinery safely.

Not responsible for reservations to the download you can have the carrier.
