Professional 3D Wheel Aligner EQT-5555U-220

Optimize your workshop's performance and profitability with the professional 3D wheel aligner model EQT-5555U-220. This advanced 3D wheel alignment system is specifically designed to provide instant, precise, and reliable geometric readings for all types of passenger cars and light commercial vehicles. Operating on a 220V single-phase power supply, it adapts to any standard electrical installation without the need for three-phase power, making it the ideal professional workshop equipment for daily use in high-demand environments.

Key Features of the 3D Workshop Wheel Aligner

Our 3D wheel aligner with optical technology represents the ultimate innovation in vehicle geometry. Its main competitive advantage lies in the fact that it completely eliminates electronics from the wheels, guaranteeing extreme durability and drastically reducing maintenance, breakdown, and calibration costs in the workshop.

Advanced 3D Measurement Technology

• High-resolution dual digital camera: Structure mounted on an extruded aluminum horizontal beam with latest-generation optical sensors that automatically process ambient light changes in the workshop, ensuring stable readings under any lighting condition.
• V3D intuitive graphic software: A highly visual three-dimensional interface that guides the mechanic step-by-step through the measurement process of toe, camber, caster, and KPI/SAI.
• Updatable technical database: Immediate access to factory specifications and values for thousands of vehicle makes and models from the global market to speed up the workflow.

Maximum Resistance and Zero Wheel Breakdowns

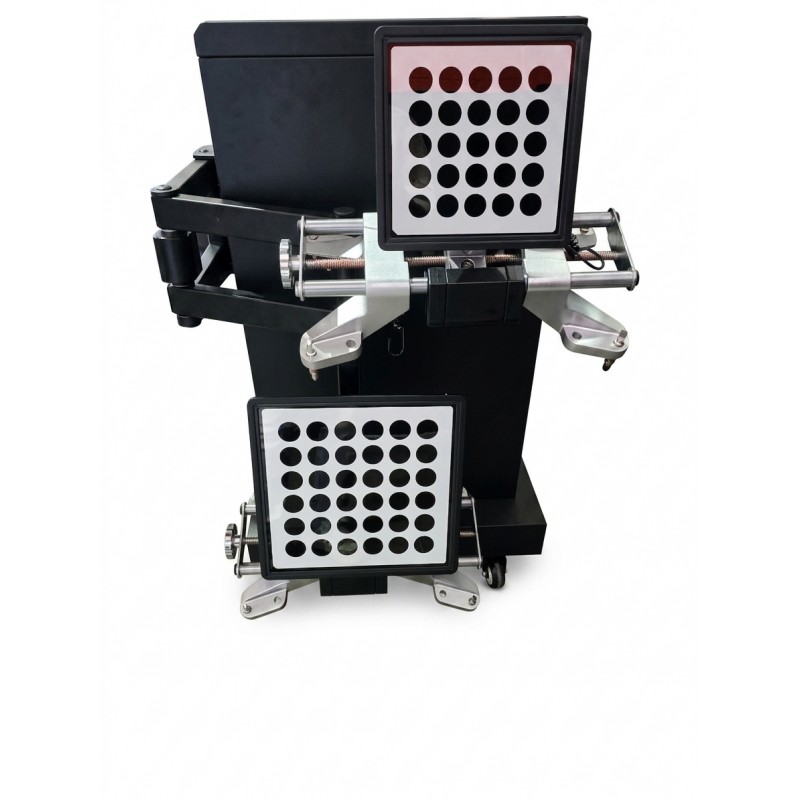

• Passive targets (3D Targets): The wheel targets are 100% mechanical reflective panels. Equipping no cables, batteries, or delicate electronic components, they are completely immune to shocks, accidental drops, or common operator oversights.
• Self-centering wheel clamps: Firm and robust high-resistance clamping system that quickly couples to the rim, guaranteeing an optimal grip without scratching or damaging the metal.

Ergonomic Design for Work Environments

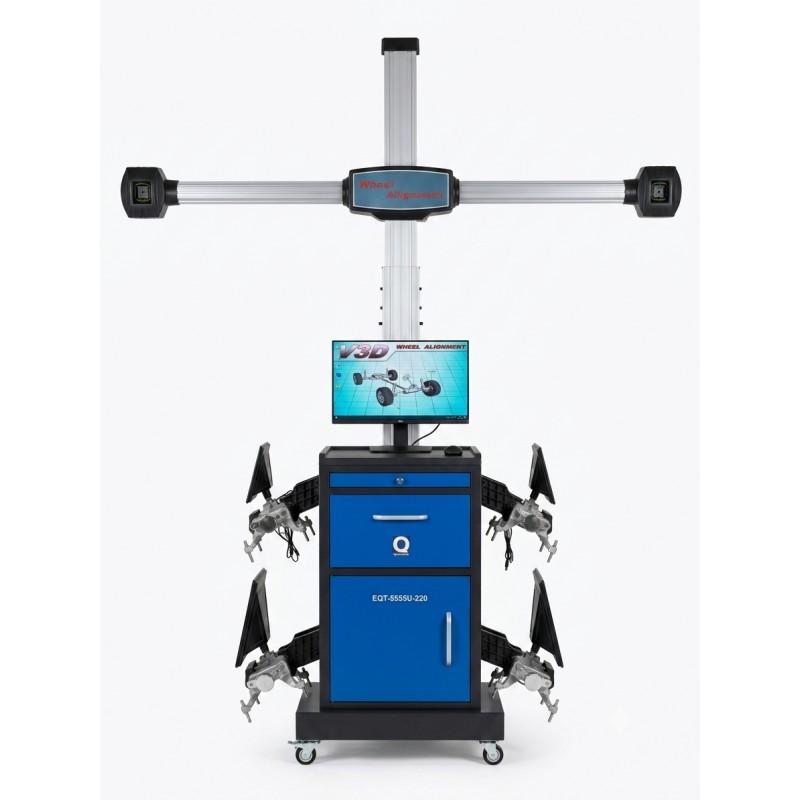

• Centralized control cabinet: Reinforced metal cabinet mounted on heavy-duty swiveling wheels, designed with a premium textured blue and black finish that withstands mechanical workshop wear.
• Integrated tool storage: Features specific lateral brackets to neatly hang the clamps and targets when the equipment is not operating, protecting your working tools.

Technical Specifications and Measurements - Model EQT-5555U-220

Equipment Dimensions and Working Capacity

• Compatible rim range: Standard capacity to work with rims from 10" to 22" inches (expandable up to 24" using optional adapters).
• Operating wheelbase: Allows alignment on vehicles with wheelbases ranging from 1,600 mm to 4,800 mm.
• Central column height: Approximately 2.60 meters (standard tower design optimized for working both on a pit or an alignment lift).
• Camera beam width: Approximately 2.80 meters, the ideal dimension to cover the full track width of any passenger car or commercial vehicle.

Installation Electrical Requirements

• Operating voltage: 220V AC (Single-phase) / 50-60 Hz. Quick and direct installation without the need for an industrial three-phase line.

Geometry Measurement Accuracy and Ranges

• Total Toe: Measurement range of ± 20° with a reading accuracy of ± 0.02°
• Partial Toe: Measurement range of ± 10° with a reading accuracy of ± 0.01°
• Camber: Measurement range of ± 10° with a reading accuracy of ± 0.02°
• Caster: Measurement range of ± 20° with a reading accuracy of ± 0.04°
• KPI/SAI: Measurement range of ± 20° with a reading accuracy of ± 0.04°
• Thrust Angle: Measurement range of ± 5° with a reading accuracy of ± 0.01°
