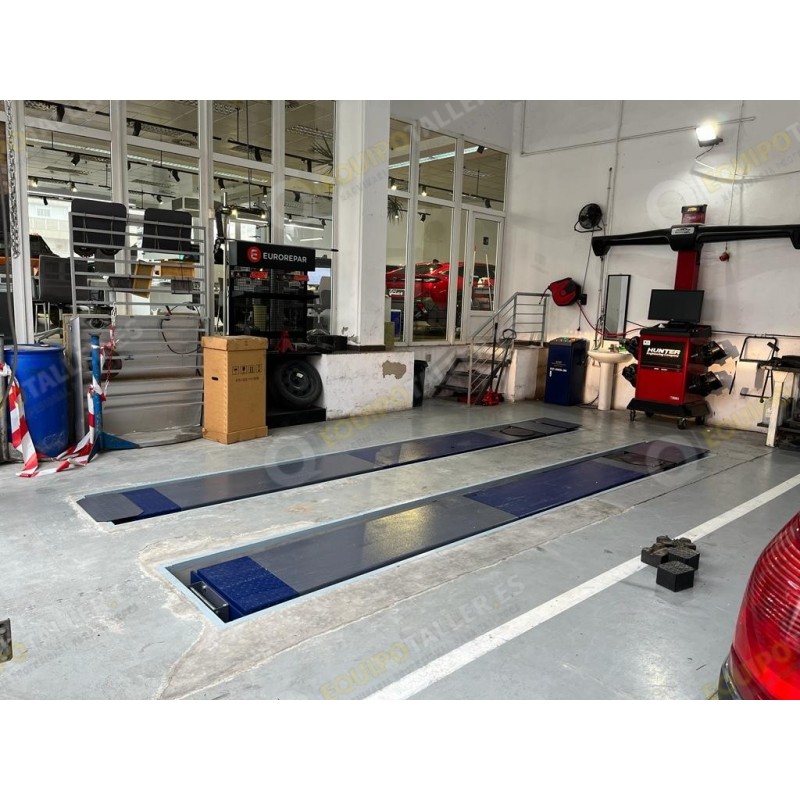

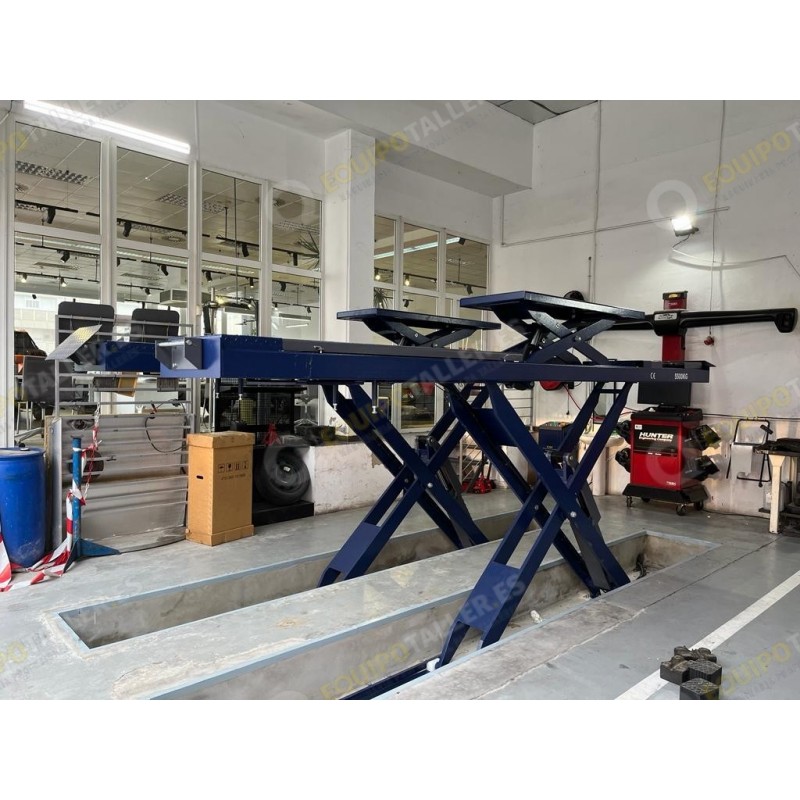

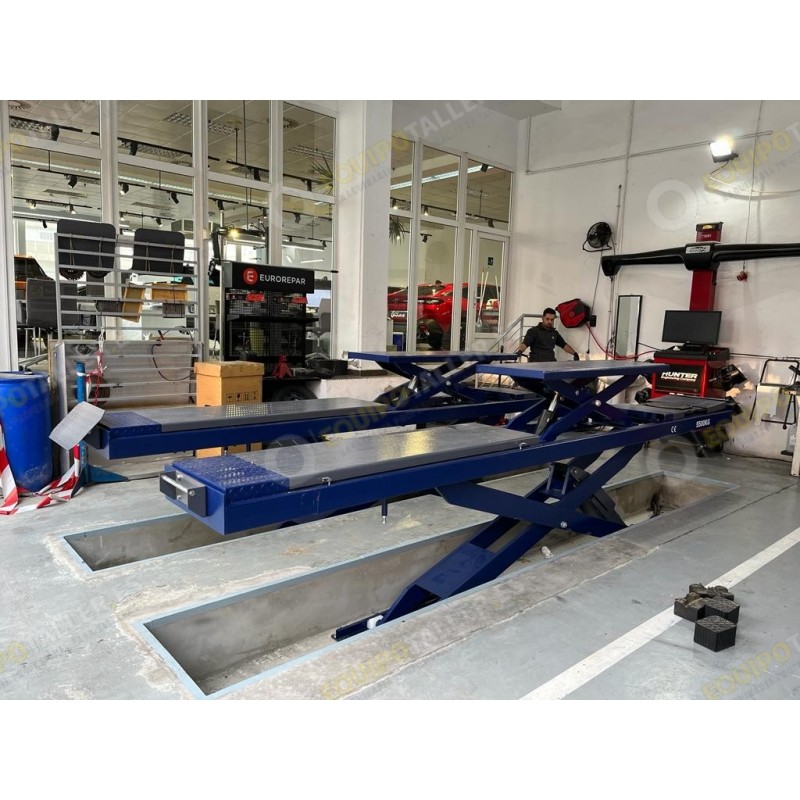

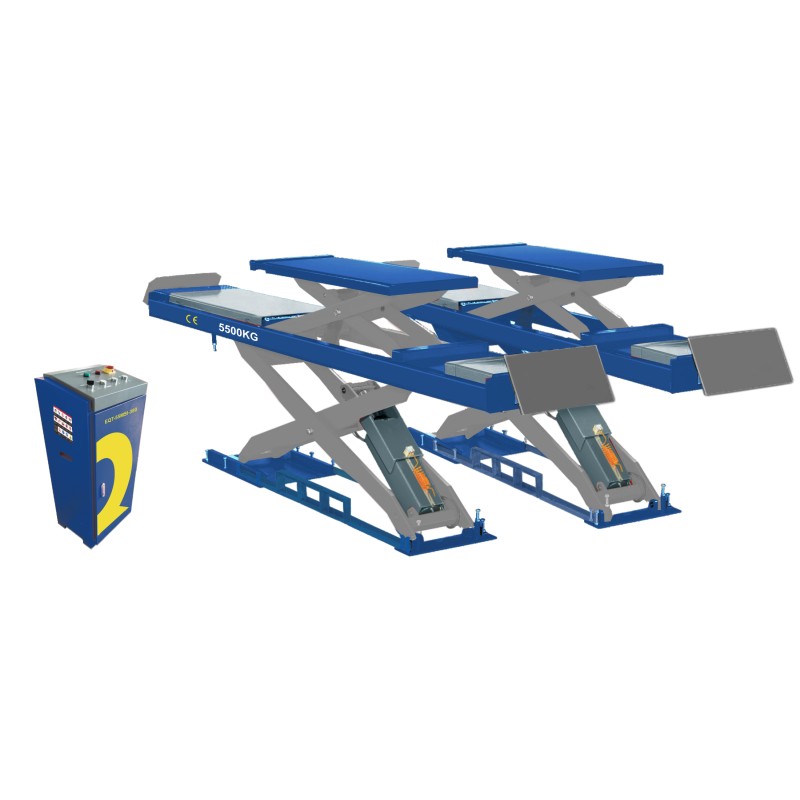

Scissor lifts are recommended for use in steering alignments, vehicle testing, maintenance and maintenance of different types of small cars.
…
Scissor lifts are recommended for use in steering alignments, vehicle testing, maintenance and maintenance of different types of small cars.
FUNCTIONS AND CHARACTERISTICS OF THE EQUIPMENT:

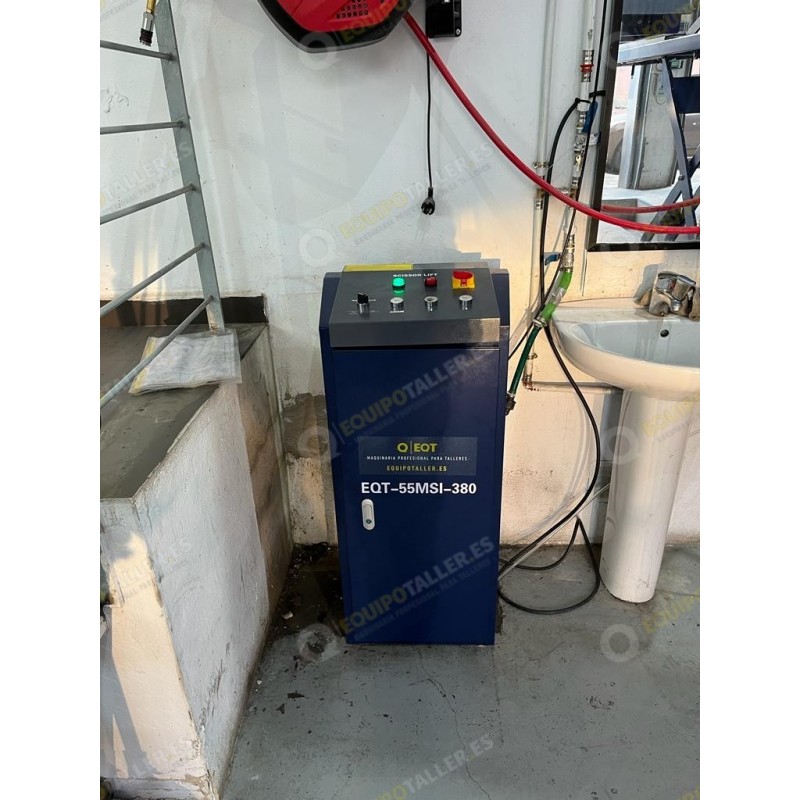

• Independent control box. The low voltage controls (24V) provide great safety.
• Pleasant appearance, with concealable structure for both levels, reducing the space required.
• Volumetric-hydraulic cylinder synchronization.
• Optimized for assembly and disassembly, as well as maintenance of the vehicle chassis.
• The position of the turntable of the front wheel is mobile, so the turntable can be adapted to more cars.
• Double mechanical safety ratchet.
• Safety valve for hydraulic failure or overload
• Kick-off device and shut-off valve for cases of rupture or explosion in cylinder or piping.
• Level control with integrated photocell device
• Mechanism and alarm for the complete lowering of the platforms.
• Emergency device for the descent of the platforms in case of electric failure.
The car lift is provided without any liquid.
TECHNICAL CHARACTERISTICS:
| Feeding |
AC 400 o 230V 65/50HZ |
|
Power |
2.2 Kw |
|
Load capacity main unit |
4.500 Kg |
|
Secondary load capacity |
4.500 Kg |
|
Type of system |
Eléctrico hidráulico |
|
Lifting height main unit |
1.850 mm |
|
Lifting height secondary unit |
450 mm |
|
Platform Height |
330 mm |
|
Length of main unit |
5.030 mm |
|
Length of secondary unit |
1.630 mm |
|
Width of main unit |
620 mm |
|
Width of secondary unit |
550 mm |
|
Total length |
5.510 mm |
| Overall Width |
2.800 mm |
|
Rise time main unit |
<50 s |
|
Down time main unit |
>60 s |
|
Secondary unit upload time |
<20 s |
|
Secondary unit down time |
>30 s |
|
Noise level |
≤ 76 db(A) |
|
Weight |
2.800 Kg |
REQUIREMENTS
The installation of this equipment should be in a perfectly level.
NOTE
The customer agrees to dispose of the material appropriate for the download of this special machinery safely.
Not responsible for reservations to the download you can have the carrier.
DELIVERY CARRIER SUBJECT TO AVAILABILITY
