2-post 6-ton clear-floor car lift 380V

€3,025.00
Tax included
€2,500.00 Tax excluded

2-post 6-ton clear-floor car lift 380V, designed for professional workshops that need to raise heavy vehicles with safety, stability, and comfort. Its clear-floor structure facilitates easy passage between posts and improves access to the underside of the vehicle, while the electro-hydraulic system, electric safety release, and automatic safety locks allow technicians to work with confidence during mechanical, maintenance, tire, brake, suspension, and underbody inspection operations. A robust solution for workshops servicing large SUVs, vans, and light commercial vehicles.

+ More info
10/EQT-6.0-2DEB-380
1
Este producto no está disponible para el envío ordinario, contacte con nosotros para solicitar una cotización personalizada de su envío.
Abrir formulario de contacto
close

Cotización de transporte


PROFESSIONAL VEHICLE LIFT · 6 TONNES · CLEAR FLOOR

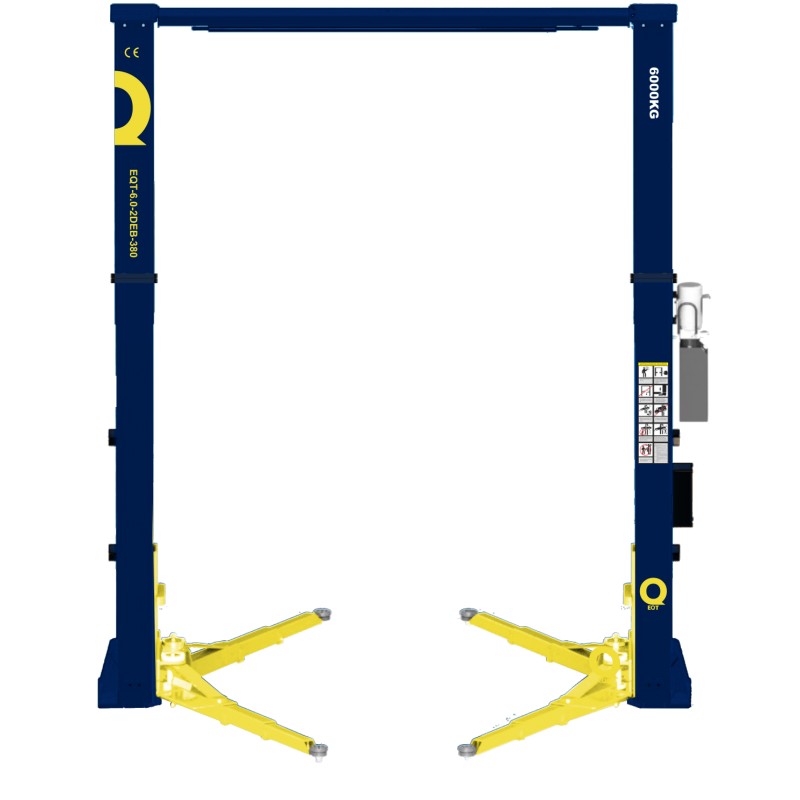

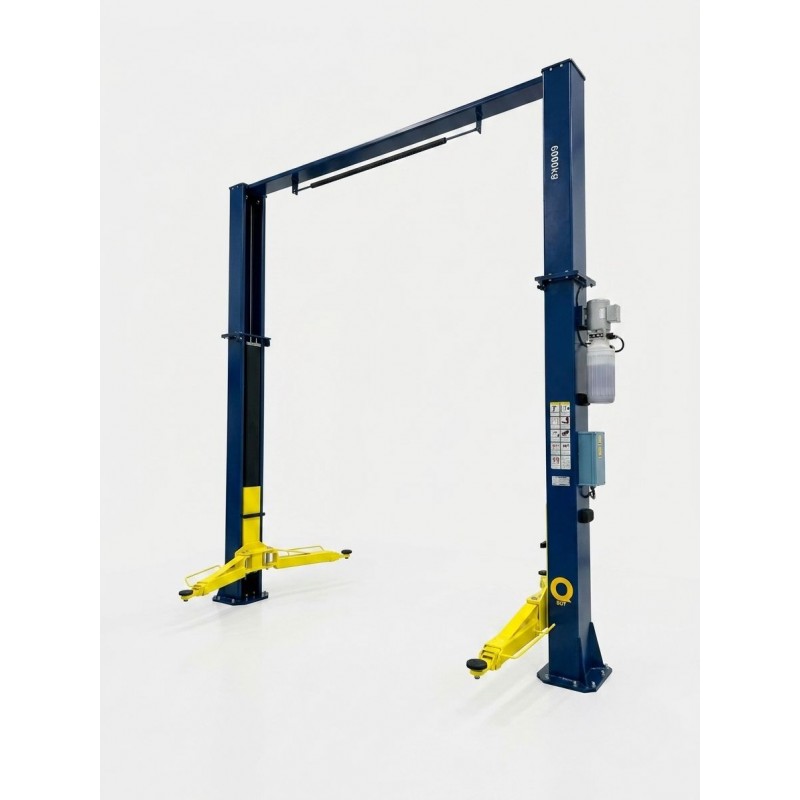

6 Tonne Overhead Two-Post Car Lift 380 V EQT-6.0-2DEB-380

Professional electrohydraulic two-post vehicle lift with an overhead crossbeam, a maximum lifting capacity of 6,000 kg and a 380 V three-phase power supply. Designed for workshops servicing passenger cars, large SUVs, vans, off-road vehicles and compatible light commercial vehicles. Its clear-floor layout provides unobstructed access between the posts, while electric lock release, automatic safety latches and adjustable locking arms support professional vehicle servicing, maintenance and repair operations.

MAXIMUM CAPACITY
6,000 kg
6 tonne lifting capacity
POWER SUPPLY
380 V
Three-phase for professional workshops
MAXIMUM LIFTING HEIGHT
1,900 mm
Overall height: 4,505 mm
LIFTING TIME
50 s
Approximate time

Key features and equipment

High 6 tonne lifting capacity: designed for workshops handling heavier vehicles, including large SUVs, vans and light commercial vehicles, provided that weight distribution, approved lifting points and rated capacity are respected.
Overhead crossbeam and clear-floor design: upper connection between the posts, with no lower crossbeam. Allows technicians, tool trolleys, oil drainers and auxiliary equipment to move more easily around the service bay.
Electric release and automatic safety latches: the safety catches automatically engage with the toothed locking points in the posts during lifting. The retention system is operated using an electric lock release.
Adjustable lifting arms with safety locks: allow the support points to be positioned according to the vehicle. Arm locking devices help secure the selected working positions.
Electrohydraulic power unit and synchronisation: lifting system with a steel cable for synchronisation and stability, together with an independent control box for lift operation.

Technical specifications

SpecificationValue
Model EQT-6.0-2DEB-380
Commercial reference 10/EQT-6.0-2DEB-380
Lift type Overhead two-post vehicle lift
Design Clear floor, no lower crossbeam
Maximum lifting capacity 6,000 kg
Operating system Electrohydraulic
Power supply 380 V three-phase
Maximum lifting height 1,900 mm
Overall height 4,505 mm
Overall width 3,980 mm
Clear width between posts 3,320 mm
Lifting time Approximately 50 seconds
Lock release Electric
Safety latches Automatic engagement with toothed locking points in the posts
Lifting arms Adjustable
Arm locking Safety locking system included
Synchronisation and stability Steel cable
Power unit Electrohydraulic
Control box Independent
Total gross weight 1,104 kg
Compatible vehicles Passenger cars, large SUVs, off-road vehicles, vans and light commercial vehicles within the lift's limits
Shipping Custom quotation required

Recommended applications

  • General automotive mechanical repairs and servicing.
  • Maintenance of large SUVs and off-road vehicles.
  • Work on compatible vans and light commercial vehicles.
  • Oil changes and scheduled inspections.
  • Tyre replacement and brake repairs.
  • Suspension and steering maintenance.
  • Vehicle underbody and mechanical component inspection.
  • Fast-fit servicing for heavier vehicles within the rated lifting capacity.

Installation, dimensions and shipping

Requires a compatible 380 V three-phase electrical supply. The lift must be installed on a level floor with suitable foundations and anchors in accordance with the manufacturer's instructions.

Overall dimensions are 4,505 mm high and 3,980 mm wide, with a clear width of 3,320 mm between posts. Check the building's available ceiling height and vehicle working clearance before installation.

The total gross weight is 1,104 kg, requiring suitable unloading and handling facilities. Installation, electrical connection, anchoring and commissioning must be carried out by qualified personnel.

Special shipping: standard delivery is not available for this equipment. Contact Equipotaller for a custom shipping quotation and delivery conditions.
