Embedded scissor lift 380V

€3,025.00
Tax included
€2,500.00 Tax excluded

Embedded scissor lift
Safety features:
Precision safety locks, synchronized hydraulic cylinder system...

+ More info
10/EQT-35SB-380
16
Quantity

PROFESSIONAL IN-GROUND SCISSOR LIFT

3.5 Tonne In-Ground Scissor Car Lift 380 V EQT-35SB-380

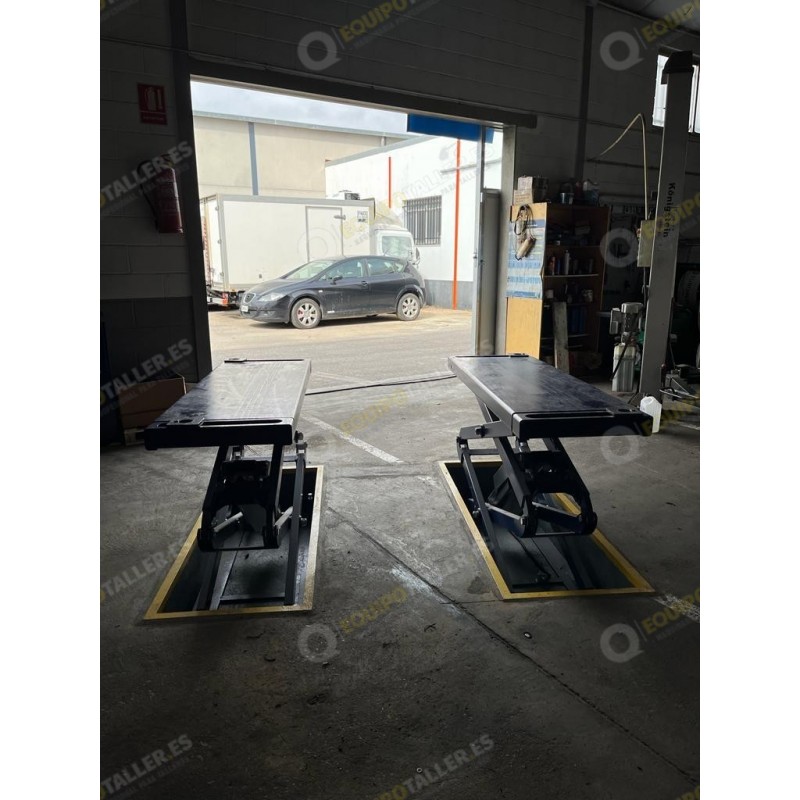

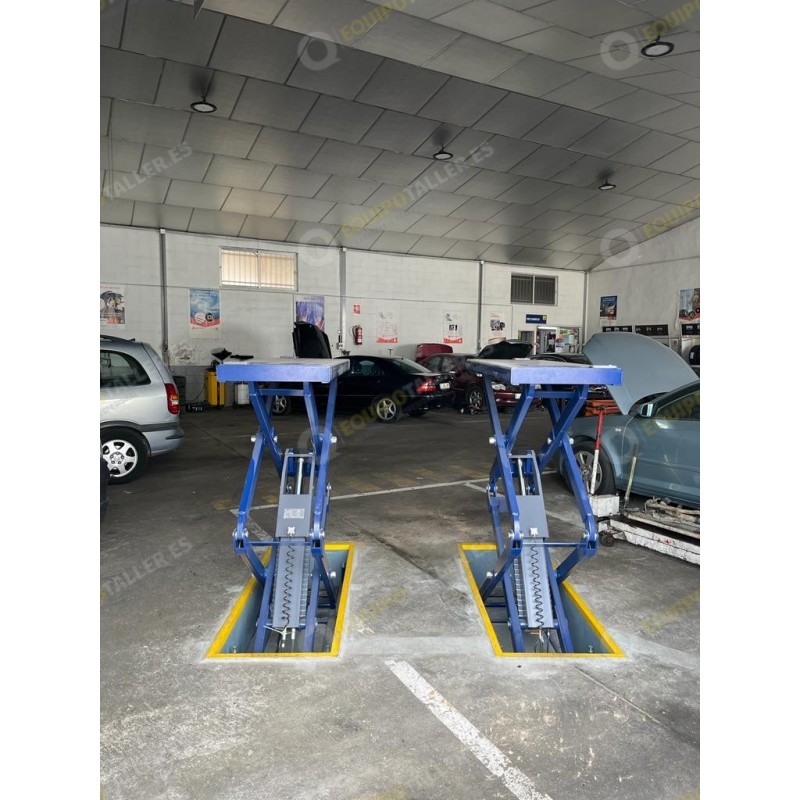

Professional electrohydraulic in-ground scissor lift with an advertised lifting capacity of 3,500 kg and a 380 V three-phase power supply. Designed for automotive workshops, tyre centres and fast-fit services, it combines extendable platforms, synchronised lifting and safety systems for maintenance and repair work. The recessed installation allows the platforms to sit flush with the workshop floor when fully lowered, helping keep the service bay clear.

ADVERTISED CAPACITY
3,500 kg
3.5 tonne lifting capacity
POWER SUPPLY
380 V
Three-phase · 50 Hz · 16 A
MAXIMUM LIFTING HEIGHT
2,250 mm
Minimum height: 330 mm
EXTENDABLE PLATFORMS
1,650–2,050
Length in millimetres

Key features and equipment

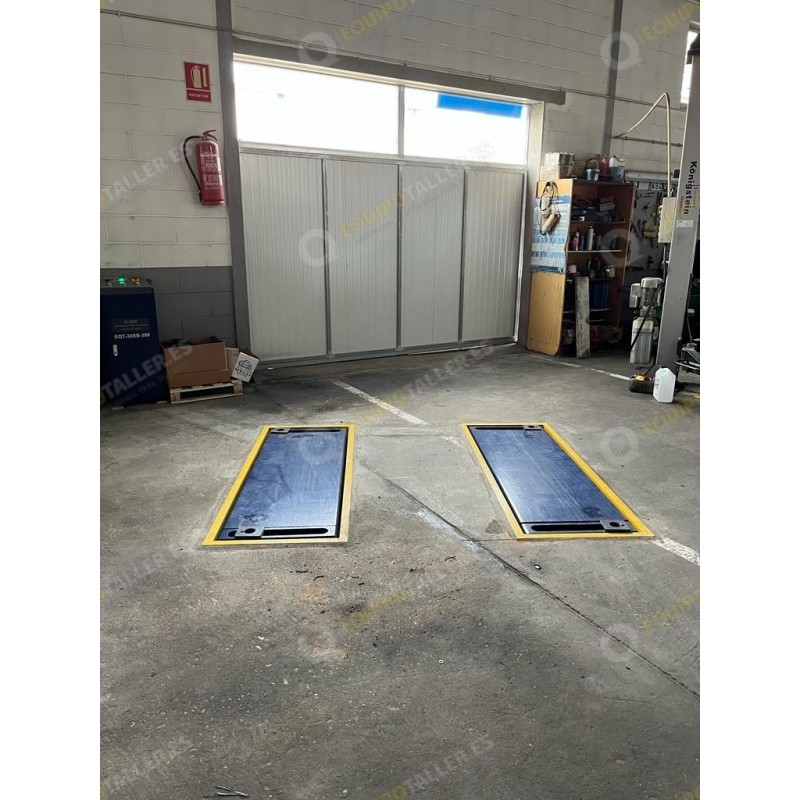

Space-saving recessed installation: the platforms remain integrated into the workshop floor when lowered, providing easier vehicle access and better use of the service area. A purpose-built installation pit is required.
Synchronised electrohydraulic lifting: progressive lifting system with extendable platforms ranging from 1,650 to 2,050 mm to accommodate different distances between approved vehicle support points.
Professional safety systems: mechanical safety locking, hydraulic overload protection, controlled lowering and protection designed to prevent sudden descent in the event of hydraulic failure.

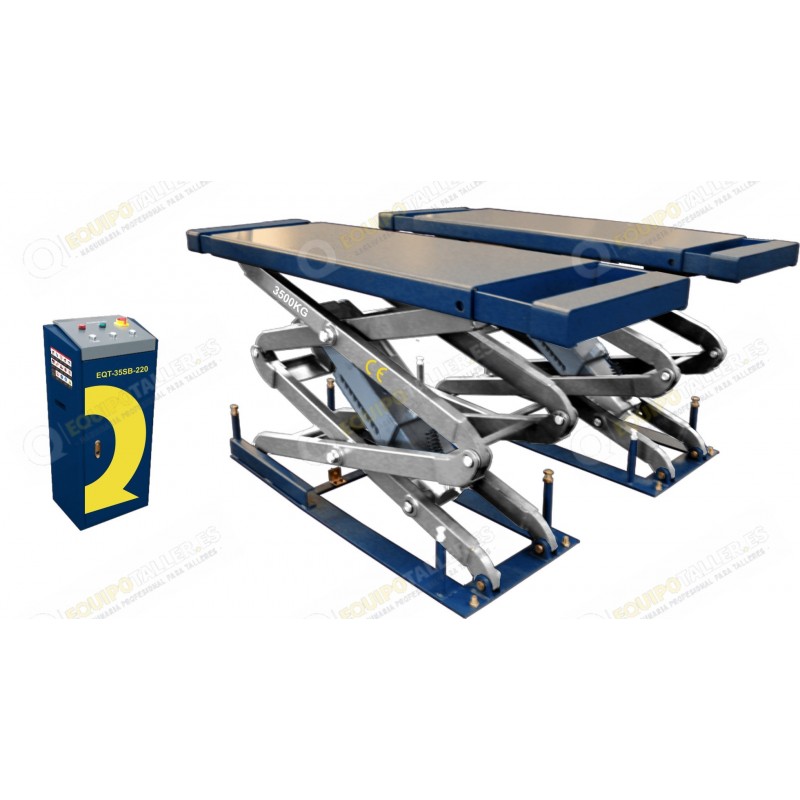

Independent control and industrial power supply: separate control box, 2.2 kW motor and 380 V, 50 Hz three-phase power supply. Intended for professional workshops with suitable electrical and pneumatic installations.

Technical specifications

SpecificationValue
Model EQT-35SB-380
Reference 10/EQT-35SB-380
Lift type In-ground scissor lift
Operating system Electrohydraulic
Advertised lifting capacity 3,500 kg
Electrical supply 380 V three-phase · 50 Hz · 16 A
Motor power 2.2 kW

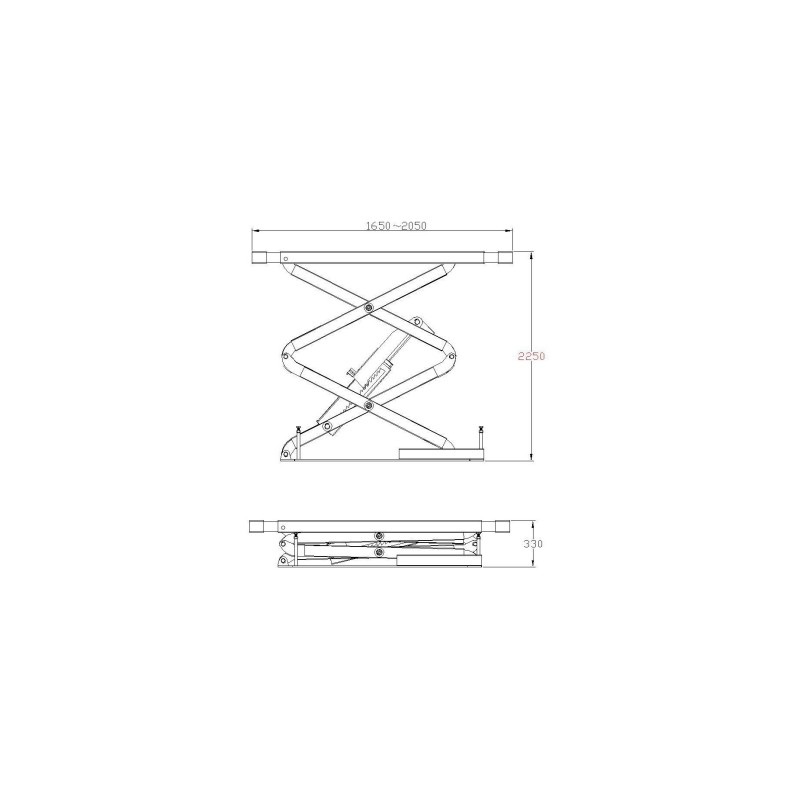

Maximum lifting height 2,250 mm
Minimum height 330 mm
Platform length 1,650–2,050 mm
Platform width 550 mm
Lifting time ≤ 55 seconds
Lowering time ≤ 55 seconds
Pneumatic pressure 6–8 kg/cm²
Lifting synchronisation Synchronised electrohydraulic lifting
Safety locking Mechanical
Hydraulic protection Overload and sudden descent protection
Lowering control Lowering safety system
Control box Independent
Installation type Recessed into a purpose-built pit
Recommended uses Automotive repairs, tyres, servicing and underbody inspection

Recommended applications

  • Automotive repair workshops and tyre centres.
  • Scheduled maintenance and oil changes.
  • Brake servicing and repairs.
  • Wheel, suspension and steering work.
  • Vehicle underbody and component inspection.
  • Fast-fit bays requiring efficient use of floor space.
  • Passenger cars and light commercial vehicles within the approved lifting capacity and dimensions.

Installation requirements

Requires a compatible 380 V, 50 Hz, 16 A three-phase electrical supply and a pneumatic supply operating at 6–8 kg/cm².

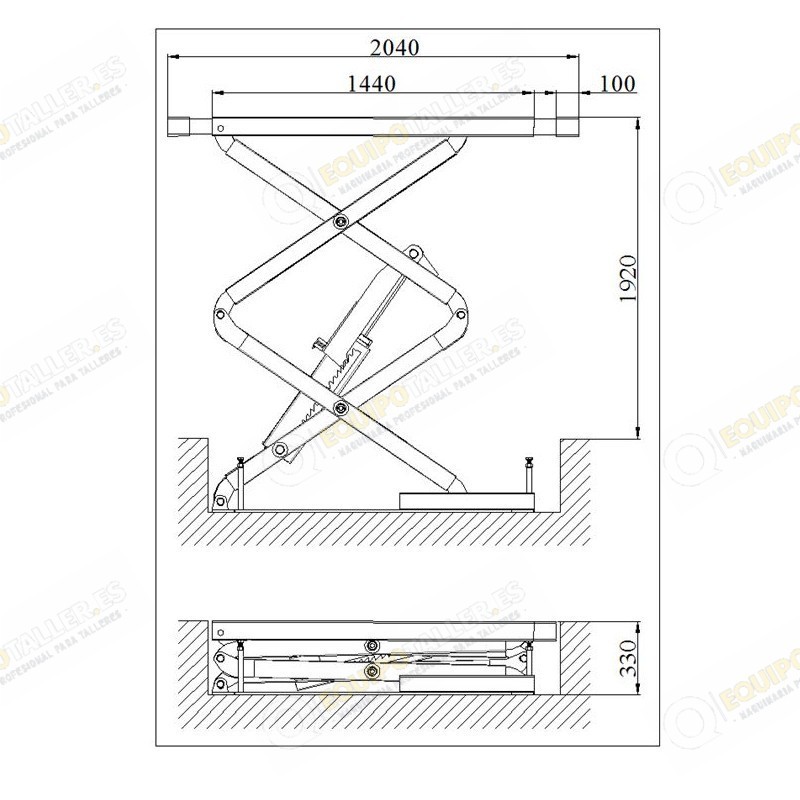

The lift must be installed in a purpose-built pit for the EQT-35SB-380. Verify its depth, dimensions, levelling, foundations and drainage using the corresponding installation drawing.

Request the installation drawing for this exact reference before carrying out any civil works. Do not use the dimensions of another scissor lift model.

Assembly, hydraulic, electrical and pneumatic connections, commissioning and safety inspections must be performed by qualified personnel in accordance with the manufacturer's instructions.
