Car Lift of fork 3 ton

€3,932.50
Tax included
€3,250.00 Tax excluded

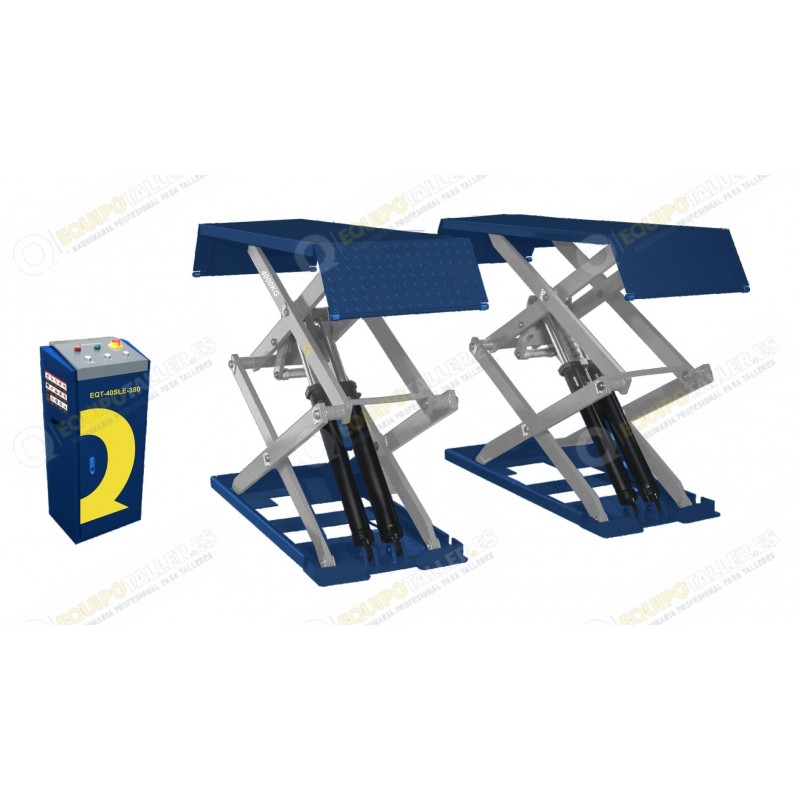

Scissor lifts with reduced platforms above ground can lift all types of vehicles weighing less than 3000kg. They are recommended for use in vehicle te…

+ More info
10/EQT-30SLE-380
23
Quantity

Scissor lifts with reduced platforms above ground can lift all types of vehicles weighing less than 3000kg. They are recommended for use in vehicle testing, maintenance and maintenance of different types of small cars.



FUNCTIONS AND CHARACTERISTICS OF THE EQUIPMENT:

  •     It uses a structure of thin scissors that make the occupation under the ground reduced
  •     Independent control box.
  •     The low voltage controls (24V) provide great safety.
  •     The synchronization of the platforms is done by in-phase cylinders.
  •     Double mechanical safety mechanism for mechanical teeth and locking.
  •     Safety valve for hydraulic failure or overload
  •     Anti-shock device and shut-off valve for cases of rupture or explosion in the cylinder or some pipe.
  •     Volumetric-hydraulic synchronization of the hydraulic cylinder.
  •     Optimized for assembly and disassembly, as well as maintenance of the vehicle chassis.
  •     Level control with integrated photocell device
  •     Mechanism and alarm for the complete lowering of the platforms.
  •     Emergency device for the descent of the platforms in case of electric failure.

The car lift is provided without any liquid.

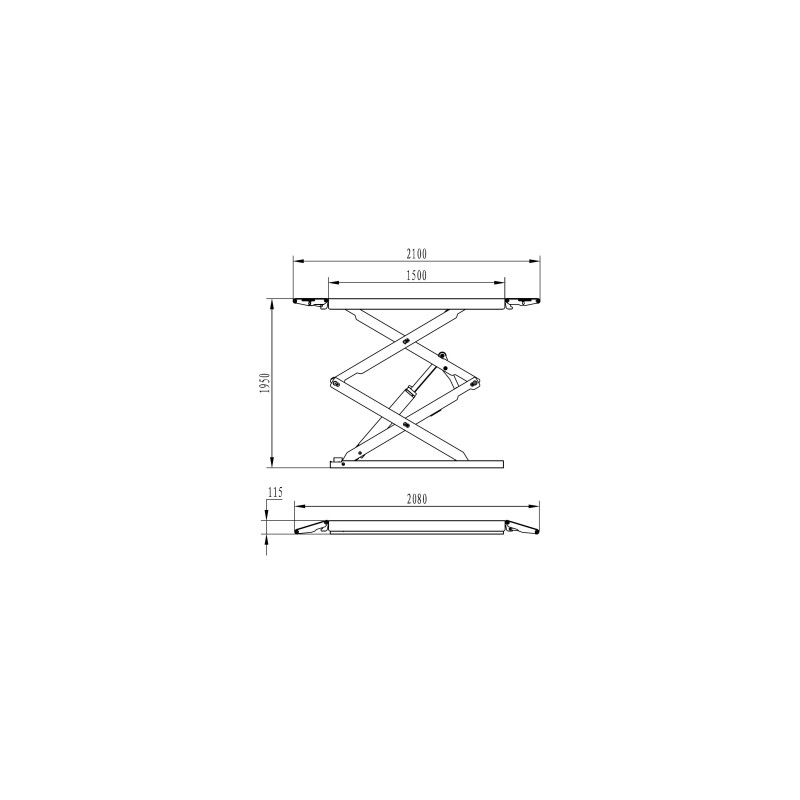

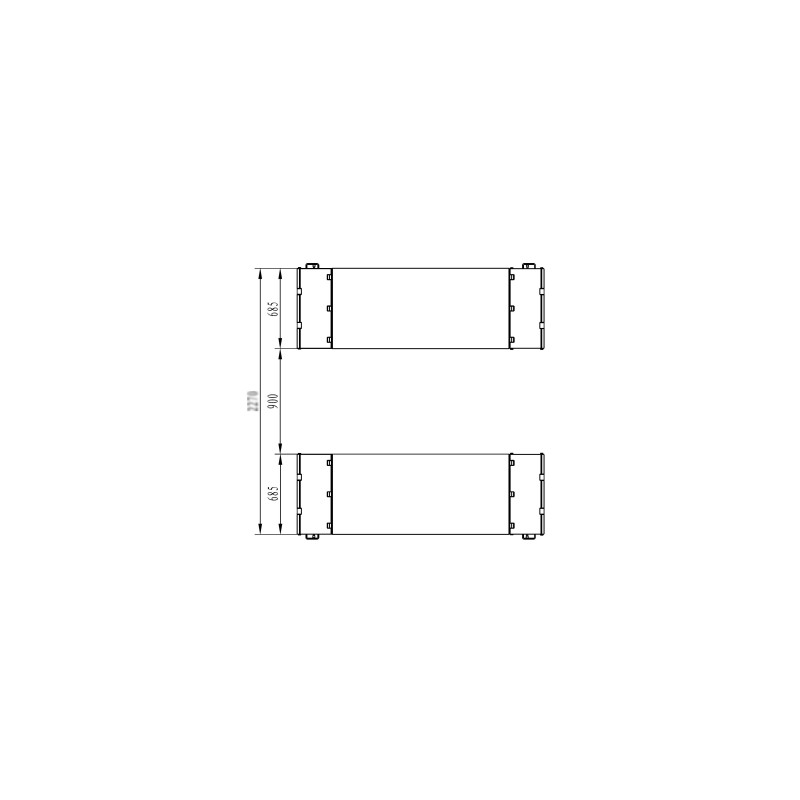

TECHNICAL CHARACTERISTICS:

Feeding

AC 400 o 230V 65/50HZ

Power

2.2 Kw

Type of system

3.000 Kg

Loading capacity

Eléctrico hidráulico

Unlock Type

Automático

Maximum lift height

1.830 mm

Platform height above grade

105 mm

Length of unit

1.550 mm

Width of unit

635 mm

Total length

2.140 mm

Overall Width

1.990 mm

Upload Time

<50 s

Down time

>70 s

Noise level

< 76 db(A)

Weight

850 kg



REQUIREMENTS
The installation of this equipment should be in a perfectly level.

NOTE
The customer agrees to dispose of the material appropriate for the download of this special machinery safely.

Not responsible for reservations to the download you can have the carrier.
