2-post 6-ton clearance car lift 220v

€3,025.00
Tax included
€2,500.00 Tax excluded

2-post clear-floor car lift with overhead gantry, 220V, and 6-ton capacity, designed for professional workshops that need to lift heavy vehicles with safety, stability, and ease of use. Its clear-floor design allows smooth movement between posts and improves access to the vehicle's undercarriage, while the electro-hydraulic system, electrical safety lock release, and automatic safety locks let you work with confidence during mechanical repairs, maintenance, tire changes, brakes, suspension, and underbody inspections. A robust solution for workshops handling large SUVs, vans, and light commercial vehicles.

+ More info
10/EQT-6.0-2DEB-220
0
Este producto no está disponible para el envío ordinario, contacte con nosotros para solicitar una cotización personalizada de su envío.
Abrir formulario de contacto
close

Cotización de transporte


PROFESSIONAL VEHICLE LIFT · 6 TONNES · CLEAR FLOOR

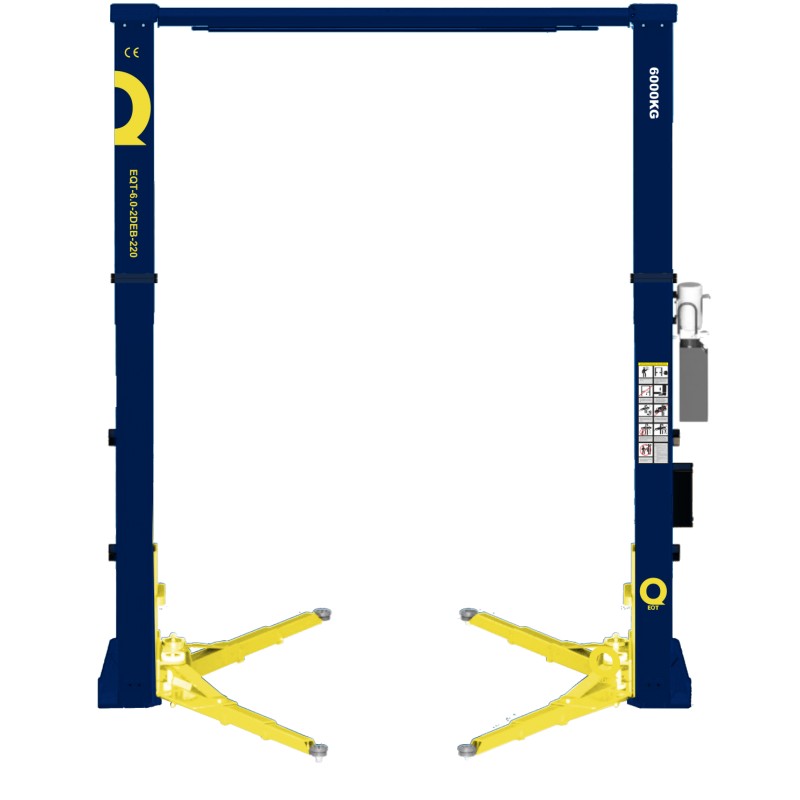

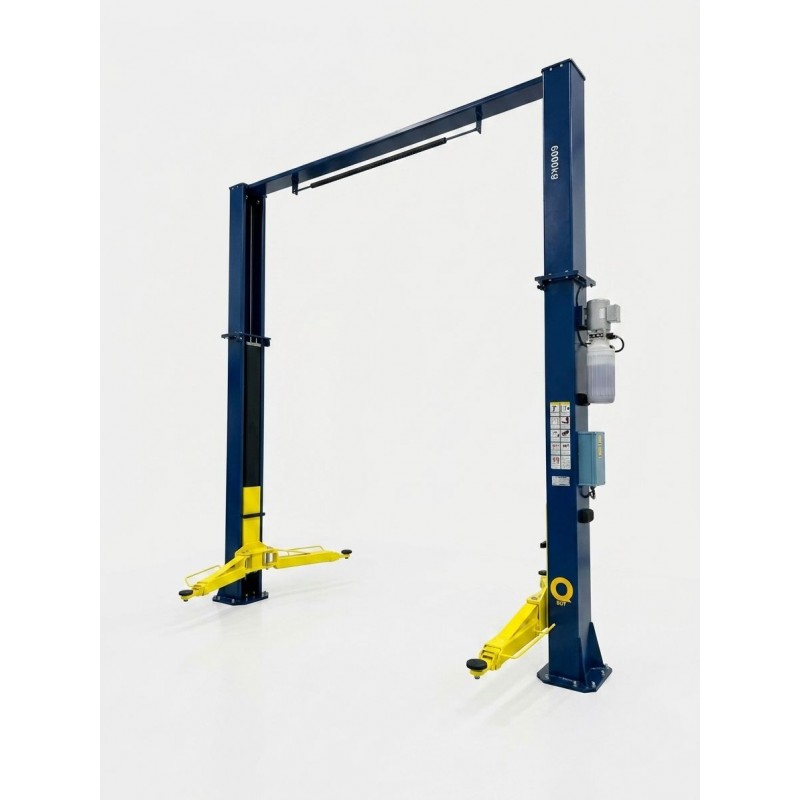

6 Tonne Overhead Two-Post Car Lift 220 V EQT-6.0-2DEB-220

Professional electrohydraulic two-post vehicle lift with an overhead crossbeam, a maximum lifting capacity of 6,000 kg and a 220 V power supply. Designed for automotive workshops handling large SUVs, vans, off-road vehicles and compatible light commercial vehicles. Its clear-floor design provides unobstructed access between the posts, while electrical lock release, automatic safety latches and adjustable locking arms support professional mechanical repairs, servicing and maintenance operations.

MAXIMUM CAPACITY
6,000 kg
6 tonne rated load
POWER SUPPLY
220 V
Version without three-phase supply
MAXIMUM LIFTING HEIGHT
1,900 mm
Convenient underbody access
LIFTING TIME
50 s
Approximate published time

Key features and equipment

Professional 6 tonne lifting capacity: designed to handle heavier vehicles than conventional 4 tonne lifts, provided that rated load, weight distribution and manufacturer-approved lifting points are respected.
Overhead crossbeam and clear-floor layout: no base plate between the posts, allowing technicians, tool trolleys, oil drainers and auxiliary equipment to move more easily around the vehicle.
Electrical lock release and automatic safety latches: safety catches automatically engage with the toothed locking points in the posts during lifting, with electrical release for lift operation.
Adjustable arms with safety locking: positionable lifting arms accommodate vehicle lifting points, with arm locks designed to secure their working positions.
Electrohydraulic synchronisation and separate controls: electrohydraulic power unit, steel synchronisation and stability cable, and an independent control box.

Technical specifications

SpecificationValue
Model EQT-6.0-2DEB-220
Reference 10/EQT-6.0-2DEB-220
Lift type Overhead two-post car lift
Base design Clear floor, no lower crossbeam
Maximum lifting capacity 6,000 kg
Operating system Electrohydraulic
Power supply 220 V
Maximum lifting height 1,900 mm
Published overall height 4,460 mm in technical table / 4,505 mm in description; verify drawing
Overall width 3,980 mm
Clear width between posts 3,320 mm
Lifting time Approximately 50 seconds
Lock release Electrical
Safety latches Automatic engagement in the posts
Lifting arms Adjustable
Arm safety Locking system
Synchronisation Steel cable
Power unit Electrohydraulic
Control box Independent
Total gross weight 1,104 kg
Vehicle types Cars, large SUVs, vans, off-road vehicles and compatible commercial vehicles
Transport Custom shipping quotation required

Recommended applications

  • General mechanical repairs and underbody work.
  • Servicing large SUVs and off-road vehicles.
  • Maintenance of compatible vans and commercial vehicles.
  • Oil changes and underbody inspections.
  • Brake repairs and tyre replacement.
  • Suspension and steering work.
  • Fast-fit services and professional maintenance.
  • Lifting heavier vehicles within approved load and lifting point limits.

Installation, dimensions and shipping

A compatible 220 V electrical supply is required. The lift must be installed on a level floor with foundations and anchors that comply with the manufacturer's manual.

The structure is 3,980 mm wide, with 3,320 mm between posts. Two different overall height figures are published, so the exact dimension must be confirmed against the installation drawing before fitting the lift into the workshop.

The total gross weight is 1,104 kg. Suitable unloading and handling equipment and qualified installers are required.

Special transport: this product requires a personalised shipping quotation. Contact Equipotaller to confirm delivery arrangements.
