Double Your Garage Space with the Most Reliable Parking Lift on the Market

The EQT-1127 electrohydraulic parking lift (Hydro-Park 1127) is the perfect solution for optimising space in residential garages, apartment buildings, automotive workshops, car dealerships and valet parking services. With a lifting capacity of 2,700 kg, it accommodates more than 90% of vehicles on the market, including saloon cars, passenger vehicles and SUVs.

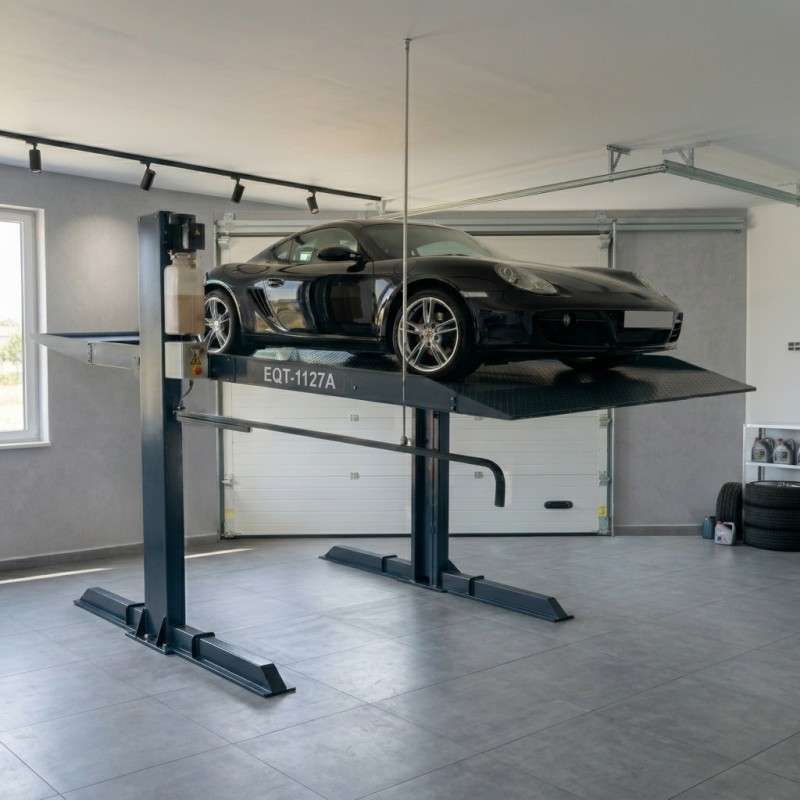

Garage parking lift installed with an SUV vehicle

Scalable Modular System: A + B Modules

Designed to maximise usable space and reduce the investment required per parking space:

  • Unit A (Model EQT-1127A): The main, independent two-post module for the first double parking space.
  • Unit B (Model EQT-1127B): An additional expansion module (one post) that connects to Unit A and shares the intermediate post. This allows continuous configurations (A + B + B...), reducing the total required width and structural costs.

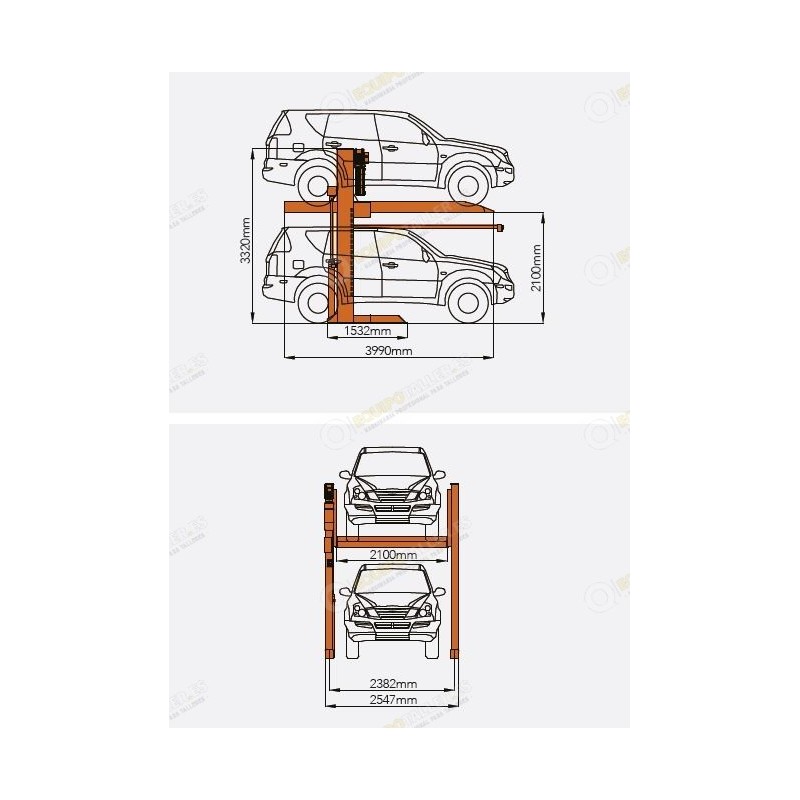

Technical drawing of modular parking lift installation with Units A and B

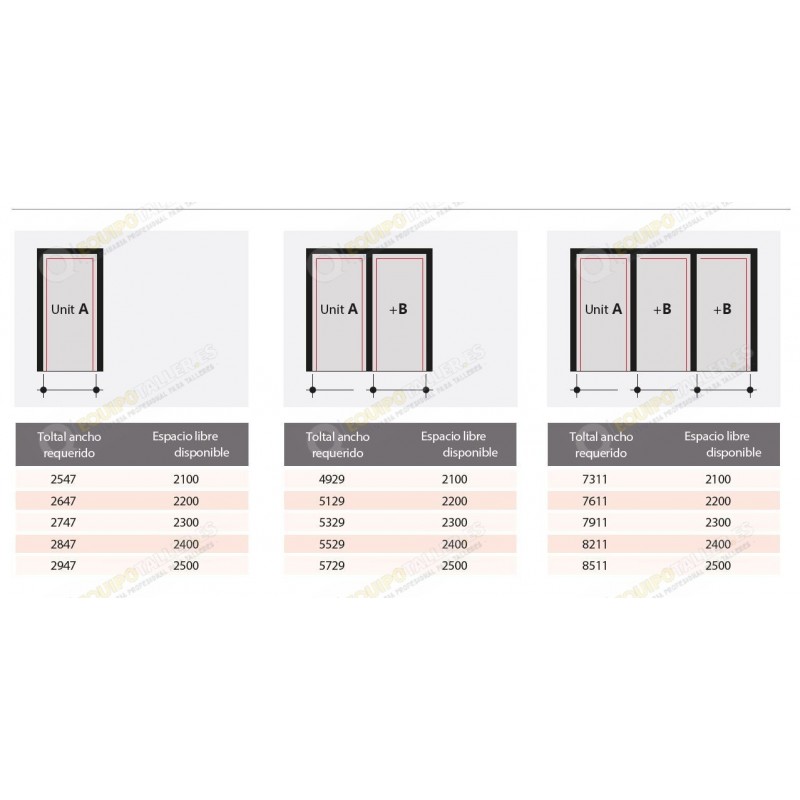

Required Width According to Parking Space Configuration

Clear Platform Width1 Space (Unit A)2 Spaces (Unit A + B)3 Spaces (Unit A + B + B)
2,100 mm (Standard) 2,547 mm 4,929 mm 7,311 mm
2,200 mm 2,647 mm 5,129 mm 7,611 mm
2,300 mm 2,747 mm 5,329 mm 7,911 mm
2,400 mm 2,847 mm 5,529 mm 8,211 mm
2,500 mm 2,947 mm 5,729 mm 8,511 mm

Technical Specifications

Lifting capacity: 2,700 kg
Lifting system: Electrohydraulic with a single high-speed cylinder
Electrical supply: 220 V / 50 Hz (Single-phase) - 2.2 kW power
Control voltage: 24 V (Electrical shock protection)
Maximum height of lower vehicle: Up to 2,050 mm
Usable platform width: 2,100 mm (Standard), adjustable up to 2,500 mm
Operating times: Raising < 50 s / Lowering > 35 s
Noise level: ≤ 80 dB(A)
Surface treatment: High-durability AkzoNobel powder coating
Certifications: CE marking, Directive 2006/42/EC, EN14010 and TÜV Rheinland

Key Benefits of the EQT-1127 Model


 Zero Electricity Consumption During Lowering

Lowering is performed entirely by gravity, reducing electrical power consumption to zero during the lowering operation.


 Galvanised Corrugated Platform

Anti-slip design compatible with thin-soled footwear. Helps protect the lower vehicle from oil or water dripping from the car parked above.


 Automatic Control and Stop

Individual key-operated control panel. The lift stops immediately if the operator releases or removes the key.

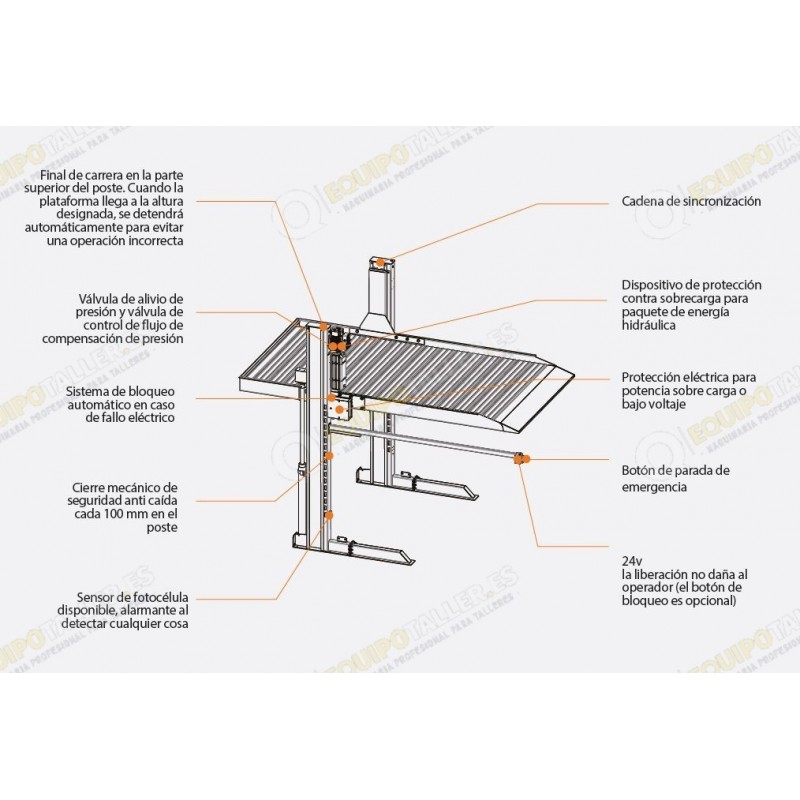

More Than 10 Integrated Safety Systems

  • Automatic mechanical locking and unlocking: Safety locking mechanism with multiple adjustable height positions.
  • Chain synchronisation: Ensures balanced raising and lowering of the platform.
  • Manual release in the event of a power cut: Manually operated valve for vehicle retrieval if the electricity supply is interrupted.
  • Hydraulic overload protection: Prevents structural damage if the 2,700 kg load capacity is exceeded.
  • Corrosion-protected posts: Highly durable chrome-plated finishes suitable for indoor and covered outdoor use.

Installation and Shipping Requirements

  • Floor surface: Requires a completely level, load-bearing concrete floor.
  • Unloading: Heavy product (1,200 kg). The customer must have suitable mechanical lifting equipment (forklift / crane) available to unload the delivery vehicle.
  • Shipping quotation: As this is specialist freight, please contact our sales department for an accurate shipping quotation based on the destination.

Frequently Asked Questions

What ceiling height does my garage need?
Calculate the required height by adding: Lower vehicle height + Upper vehicle height + 15 cm (platform) + 10 cm safety clearance.

Can it be installed outdoors?
Yes. The lift features AkzoNobel powder coating and corrosion protection on the posts, making it suitable for indoor use and sheltered outdoor areas.

What is the difference between EQT-1127A and EQT-1127B?
Module A is the independent two-post base unit. Module B is the single-post extension that connects to Module A to add adjacent parking spaces by sharing a post.
