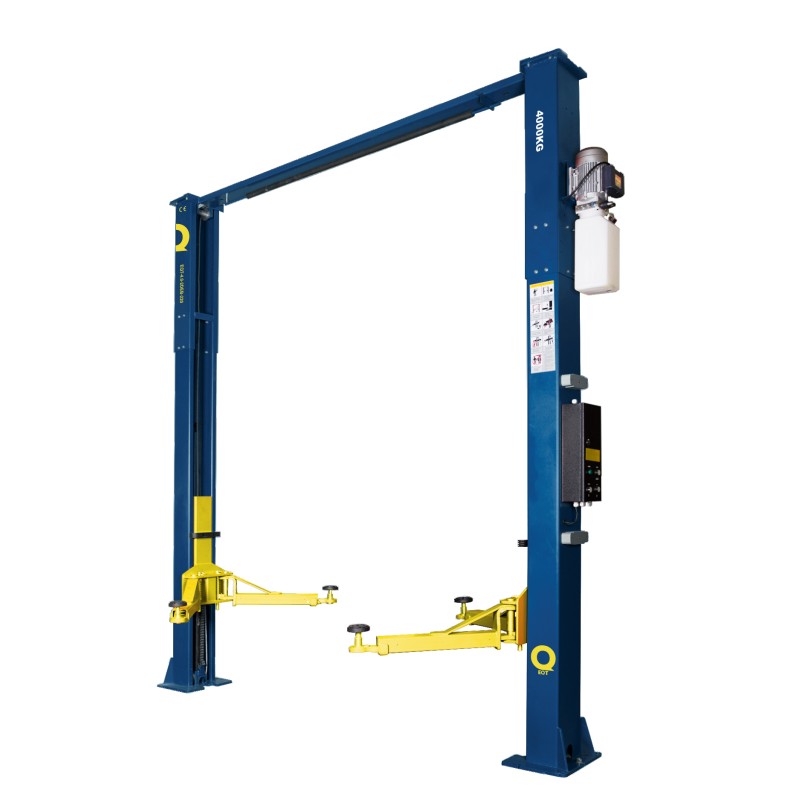

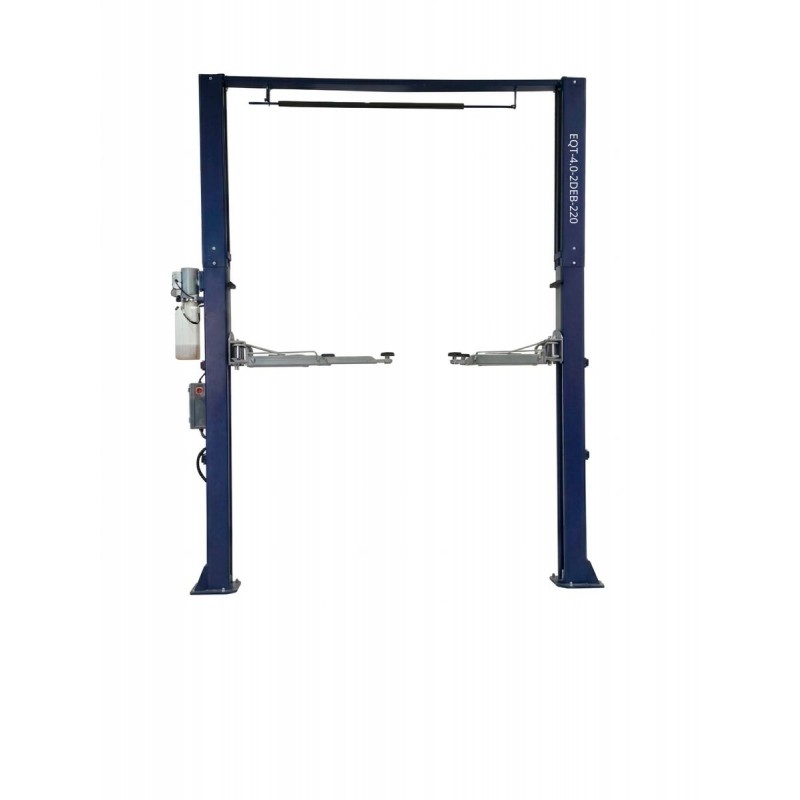

Professional electrohydraulic two-post lift with an overhead crossbeam, a maximum lifting capacity of 4,000 kg and a 220 V, 50 Hz power supply. Designed for automotive repair workshops, tyre centres and fast-fit services looking for a robust, stable structure for lifting passenger cars, SUVs and light commercial vehicles. Features automatic lock release, electromagnetic safety locks, dual hydraulic cylinders and automatic electrical controls for maintenance and repair operations.
| Specification | Value |
|---|---|
| Model | EQT-4.0-2DEB-220 |
| Reference | 10/EQT-4.0-2DEB-220 |
| Equipment type | Overhead two-post vehicle lift |
| Operation | Electrohydraulic |
| Maximum capacity | 4,000 kg |
| Power supply | 220 V · 50 Hz |
| Motor power | 2.2 kW |
| Maximum lifting height | 1,930 mm |
| Overall height with crossbeam | 4,200 mm |
| Overall width | 3,365 mm |
| Width between posts | 2,780 mm |
| Lifting time | Less than 50 seconds |
| Lowering time | More than 25 seconds |
| Noise level | Below 80 dB(A) |
| Equipment weight | 650 kg |
| Hydraulic cylinders | 2 |
| Lock release | Automatic |
| Safety locking system | Automatic electromagnetic |
| Safety locking points | 2 per post |
| Arm locking | Automatic |
| Lifting system | Safety cable and steel stability cable |
| Control panel | Fully automatic electrical |
| Limit switch | Included |
| Vehicle door protection | Included |
| Paint finish | Corrosion-resistant |
| Compliance | European standards and approvals stated by the supplier |
| Hydraulic oil | Not included |
| Applications | Passenger cars, SUVs and light commercial vehicles |
A 220 V, 50 Hz compatible electrical supply is required. Install the lift on a perfectly level surface, ensuring that the foundations and anchors meet the manufacturer's instructions.
Because the overhead crossbeam brings the overall height to 4,200 mm, the building's clear height and vehicle operating space must be checked before installation. Overall width is 3,365 mm.
Important: the lift is supplied without hydraulic oil. Add the type and quantity specified in the manual before commissioning.
Weighing 650 kg, this equipment requires suitable unloading machinery. Assembly, anchoring and safety system checks must be carried out by qualified personnel.
