Hydraulic motorcycle lift 500 Kg

€1,277.76
Tax included
€1,056.00 Tax excluded

hydraulic
The lift is provided without any liquid
Capacity 400 Kg
Min height 18 cm
Max. height 76 cm
Conforms to safety stand…

+ More info
10/EQT-M02
0
Quantity
Out-of-Stock

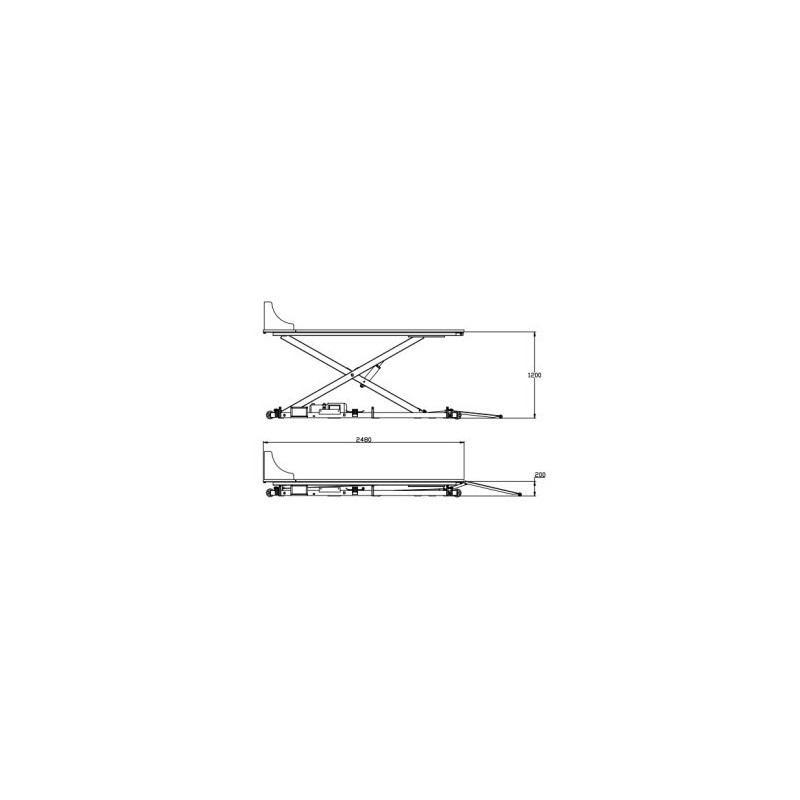

Technical Specifications:

Lifting Capacity (kg)Lifting Height (mm)Initial Platform Height (mm)Platform Length (mm)Platform Width (mm)Lifting Time (s)Lowering Time (s)Total Weight (kg)Total Width (mm)Total Length (mm)
500 1200 200 2480 715 ≤ 35 ≤ 35 285 810 3180

Electrical Specification:

  • Motor: 0.75 kilowatts
  • Standard voltage: 220V / 50Hz / 1ph
  • Optional: different voltage as per client requirement
  • Noise level: ≤ 70 dB
  • Air pressure: 6–8 kgf / cm²
  • Hydraulic pump: rated flow 0.8 ml/r
  • Hydraulic oil: volume 1.5 liters; use L-HM 32# in winter and L-HM 46# in summer
  • Operating conditions: ambient temperature 5–40 ℃
  • Working humidity: 30–95%
  • Transport/storage temperature: -25 ℃ ~ 55 ℃

REQUIREMENTS

This equipment must be installed on a perfectly level floor.

NOTE

The customer agrees to provide appropriate equipment to safely unload this special machinery.

We are not responsible for any unloading limitations set by the carrier.
