Two-post car lift 4 tons with arch 380v

€2,202.20
Tax included
€1,820.00 Tax excluded

This car lift operates electro-hydraulically and has been designed to work with medium and small-sized vehicles with…

+ More info
10/EQT-4.0-2DEB-380
7
Quantity

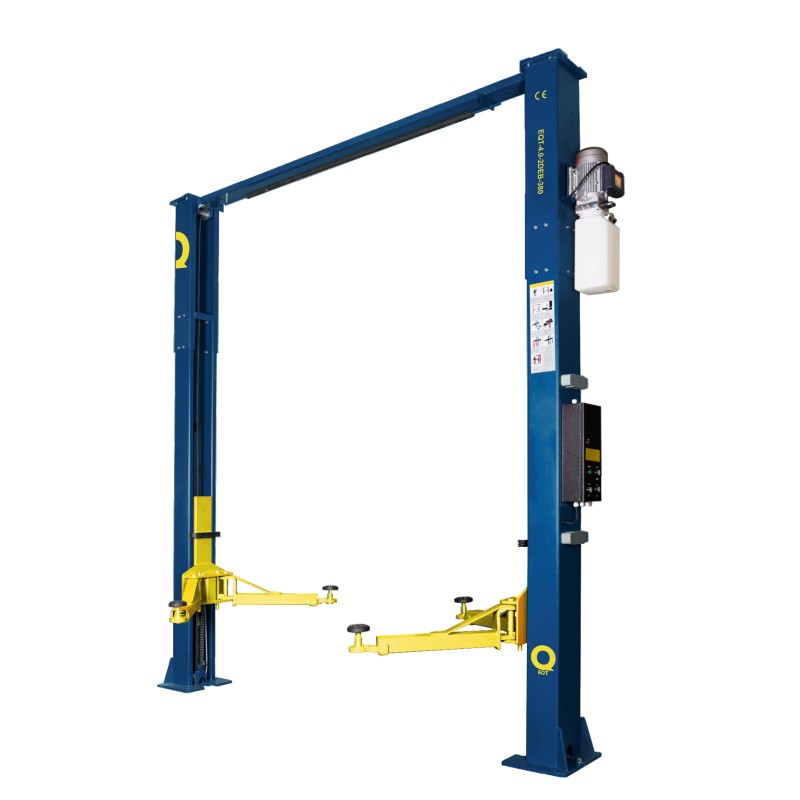

PROFESSIONAL OVERHEAD TWO-POST LIFT · 4 TONNES

4 Tonne Overhead Two-Post Car Lift 380 V EQT-4.0-2DEB-380

Professional electrohydraulic two-post car lift with an overhead crossbeam, a 4,000 kg lifting capacity and 380 V three-phase power supply. Equipped with dual hydraulic cylinders, automatic lock release, electromagnetic safety locks and three-stage extending lifting arms. Designed for automotive workshops, tyre service centres and fast-fit facilities servicing passenger cars, SUVs and light commercial vehicles.

MAXIMUM CAPACITY
4,000 kg
4 tonne rated capacity
POWER SUPPLY
380 V
Three-phase · 50 Hz · 2.2 kW
LIFTING HEIGHT
1,910 mm
Listed overall height: 2,850 mm
LIFTING TIME
< 30 s
Lowering: > 26 seconds

Key features and equipment

Overhead crossbeam and dual hydraulic cylinders: two-post electrohydraulic lifting system with a safety cable and steel cable designed to improve lifting arm stability.
Automatic electromagnetic safety: automatic lock release, two safety locking points on each post, automatic arm locking and travel limit sensors.
Three-stage extending arms with adapters included: lifting arm adjustment for different vehicle support points, subject to the manufacturer's approved lifting positions and load distribution limits.
Professional controls and durable finish: fully automatic electrical control panel, 2.2 kW motor, corrosion-resistant paint and European compliance stated by the supplier.

Technical specifications

SpecificationValue
Model EQT-4.0-2DEB-380
Reference 10/EQT-4.0-2DEB-380
Type Overhead two-post vehicle lift
Operating system Electrohydraulic
Maximum capacity 4,000 kg
Power supply 380 V three-phase · 50 Hz
Motor power 2.2 kW
Maximum lifting height 1,910 mm
Listed overall height 2,850 mm (verify against installation drawing)
Overall width 3,420 mm
Width between posts 2,890 mm
Lifting time Less than 30 seconds
Lowering time More than 26 seconds
Noise level Below 80 dB(A)
Machine weight 640 kg
Hydraulic cylinders 2
Lock release Automatic
Primary safety Automatic electromagnetic locking
Safety locking points 2 per post
Lifting arms Three-stage extending
Arm locks Automatic
Safety cables Safety lifting cable and steel stabilising cable
Controls Fully automatic electrical panel
Limit switches Sensors included
Adapters Included
Finish Corrosion-resistant paint
Standards European compliance stated by supplier
Hydraulic oil Not included
Vehicles Passenger cars, SUVs and light commercial vehicles within rated capacity

Recommended applications

  • General mechanical repairs and underbody work.
  • Inspections, oil changes and scheduled servicing.
  • Brake repairs and tyre replacement.
  • Steering and suspension diagnostics and repairs.
  • Underbody component inspection.
  • Fast-fit servicing in workshops with three-phase power.
  • Maintenance of cars, SUVs and light commercial vehicles within approved load and support limits.

Installation requirements

Requires a 380 V, 50 Hz three-phase electrical supply and a perfectly level installation base, with foundations and anchors that comply with the manufacturer's instructions.

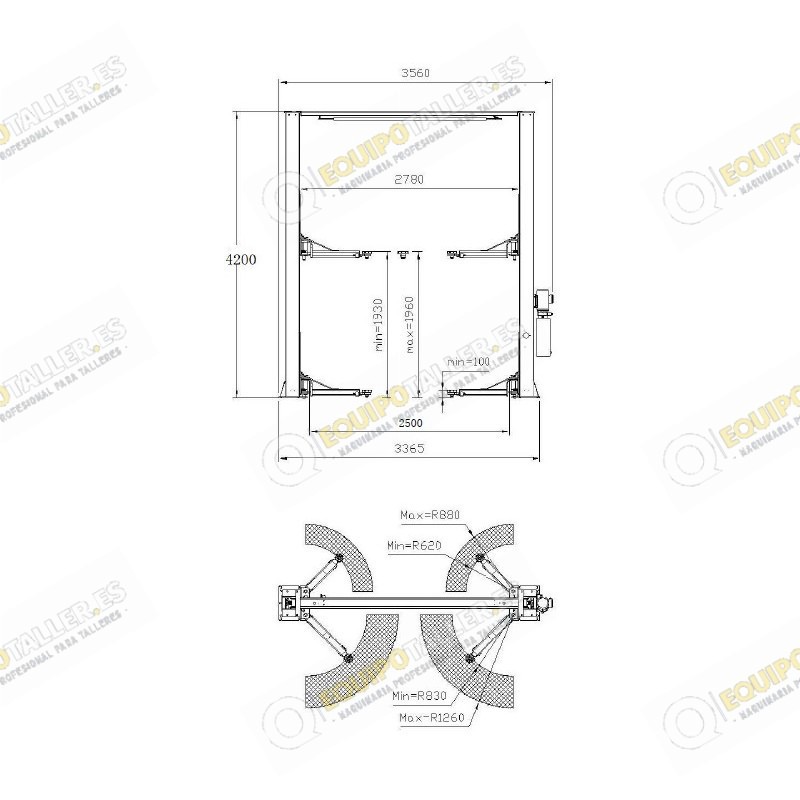

The listing states an overall width of 3,420 mm and height of 2,850 mm. Since this model features an overhead crossbeam, verify its actual height against the installation drawing and allow sufficient vehicle lifting clearance.

Hydraulic oil is not included. Confirm the specified fluid type and quantity in the manual before commissioning.

Suitable equipment is needed to unload and handle this 640 kg machine. Installation, anchoring and safety checks must be performed by qualified personnel.
