This electro-hydraulic lift operation is designed to work with vehicles of medium and small size with a maximum total weight of 4t in garages and work…

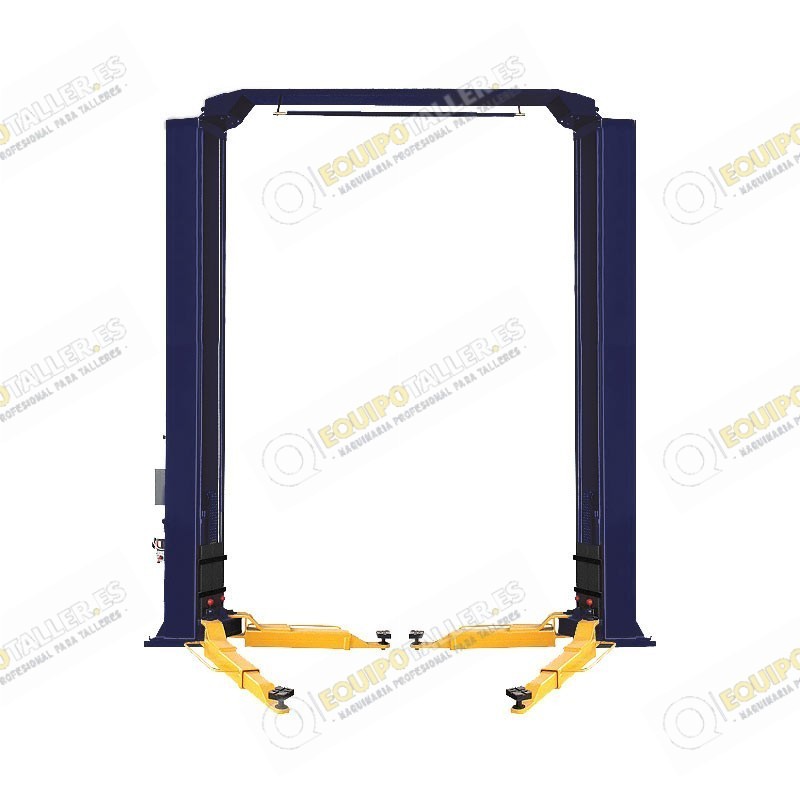

+ More infoThis electro-hydraulic lift operation is designed to work with vehicles of medium and small size with a maximum total weight of 4t in garages and workshops.
This equipment to include an arch between columns, allows the operator a total freedom of movement to not have any type of obstacle in the floor.
FUNCTIONS AND CHARACTERISTICS OF EQUIPMENT:
· The car lift complies with Directive 2006/42 / EC and includes the latest required standards such as EN 1493: 2010.
· Designed based on the standards of quality and performance to meet the necessary requirement of any garage or workshop.
· Automatic electromagnetic safety system equipped with two anchor points in each column.
· Powered by two hydraulic cylinders.
· Panel fully automatic electric control.
· System security cable elevation.
· Automatic safety anchor arm.
· Steel cable for stability arms team.
· Available in 380 V (three-phase) and 220 V (single phase) depending on customer demand.
· Painting with corrosion resistant finish
· Regulations and European approvals.
The car lift is provided without any liquid.
TECHNICAL CHARACTERISTICS:
Feeding | 220v 50Hz/ 380v 50Hz |
Power | 2.2 Kw |
Loading Capacity | 4.000 Kg |
System Type | Eléctrico hidráulico |
Tipo de desbloqueo | Automático |

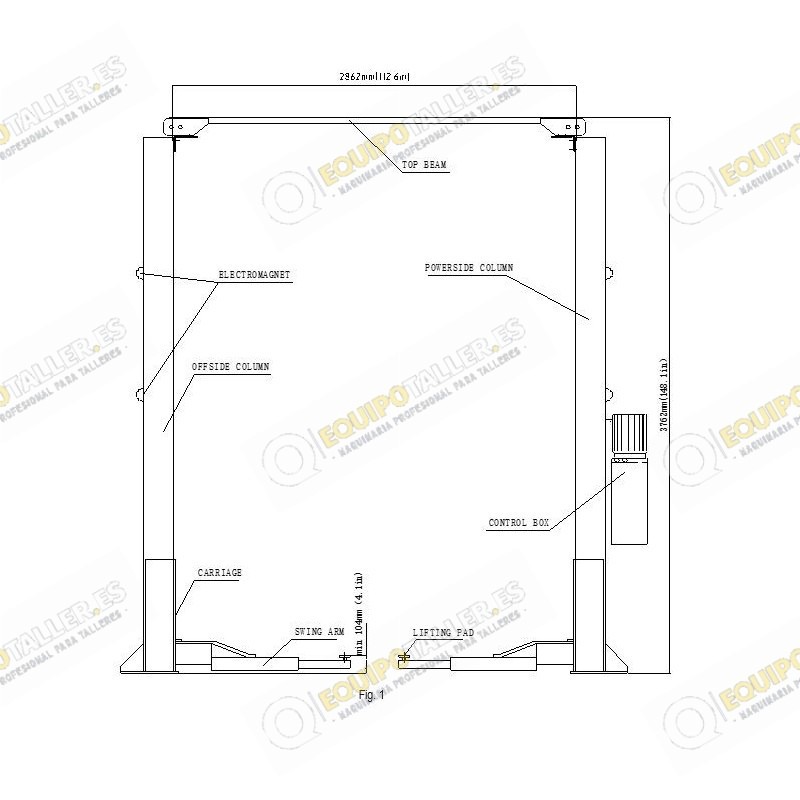

Maximum lift height | 1.913 mm |
Total height | 3.762 mm |
Rise time | <55s |
Lowering time | >45s |

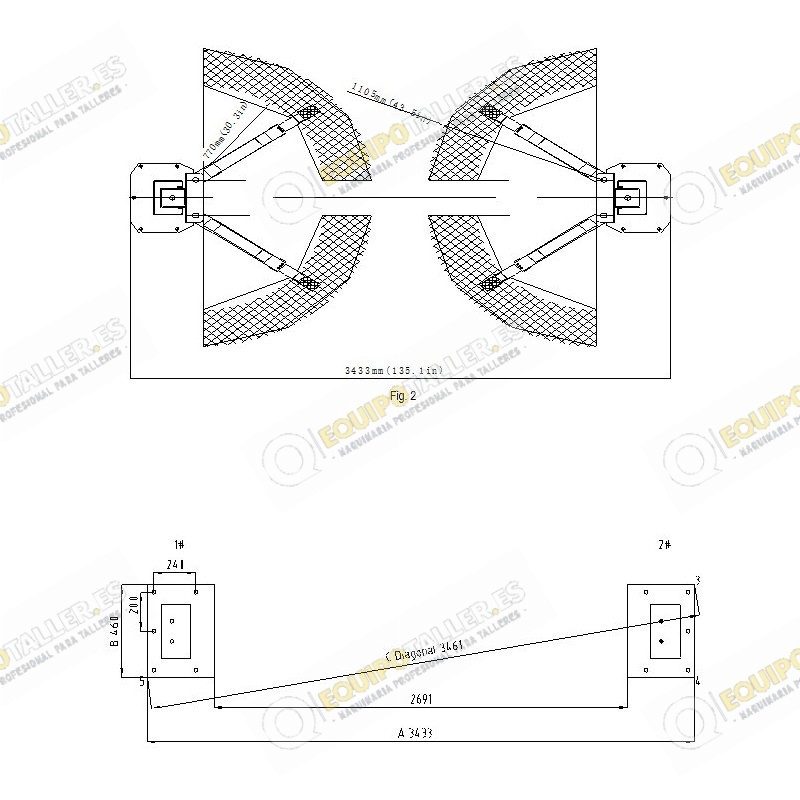

Width between columns | 2.862 mm |
Overall width | 3.433 mm |
Noise level | < 80 db(A) |
Weight | 700 kg |
REQUIREMENTS
The installation of this equipment should be in a perfectly level.
NOTE
The customer agrees to dispose of the material appropriate for the download of this special machinery safely.
Not responsible for reservations to the download you can have the carrier.
