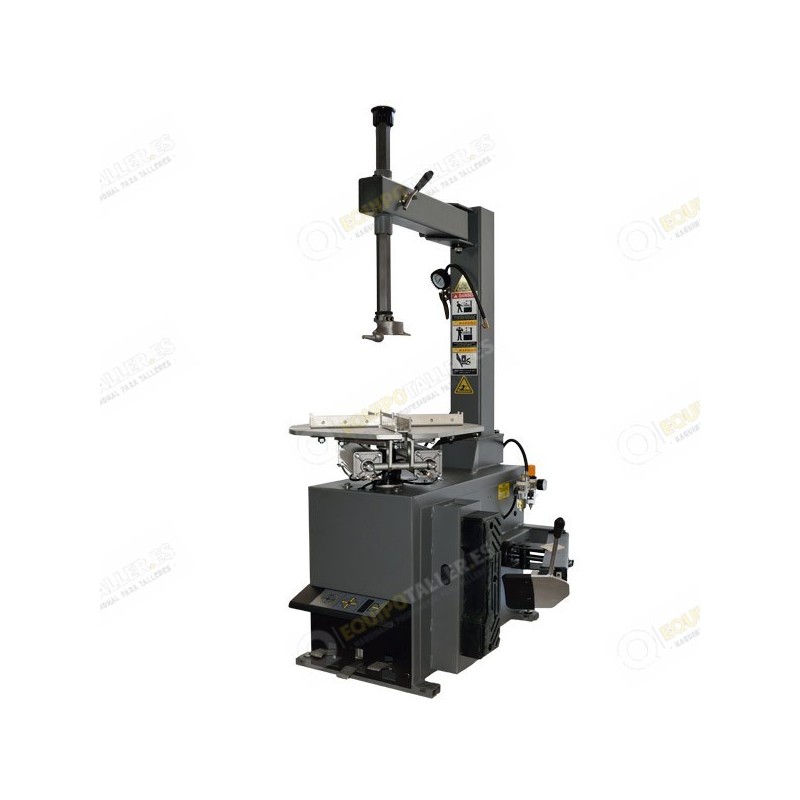

The M806B is a tire changer, designed to mount and dismantle motorcycle wheels.
FUNCTIONS AND CHARACTERISTICS OF THE EQUIPMENT:
The mounting head is made of steel with a special composition that offers the customer a lifetime warranty.
• The small mounting head meets the standards for tires between 6 "-24".
• The foot control device has the step-by-step function that can stop the clamp in any position to hold the rim properly.
• The machine includes the plate protection system and the mounting head to avoid damaging the rim.
• It has three pedals with the functions of bead breaker, rim holder and turn of the plate, which facilitate to the user the task of assembling and disassembling the cover.
• The nail is made of a special, durable and durable material.
TECHNICAL CHARACTERISTICS:
Feeding
| 110 V/ 220 V/ 380 V |
Power | 0.75/1.1 Kw |
Outer claw | 6 -24 " |
Maximum tire diameter | 960 mm |
Rotation speed of the turntable | 6.5 rpm |
Width of wheel | 3-12 " |
Work pressure | 8-10 bar |
Noise level | ≤ 70 db(A) |
Weight | 180 Kg |
